Main features

1.Upper type direct drive for motor, rotating center for drive and drum coincide with machine center, with smooth and stable operation
2.Liquid damping vibration absorber: No foundation for installation facilitates operation and maintenance.
3.Large length -diameter ratio, big loading capacity.
4.Rigidly joint between base and case, offering simple and compact construction
5.Independent bearing seat, large bearing support span, low basket gravity center, larger carrying capacity
6.Driving without belt, ensures no friction dust
7.Fully-automatic operation program control, ensuring reliable and safe operation.
8.Nitrogen protection system is available for explosion-proof application

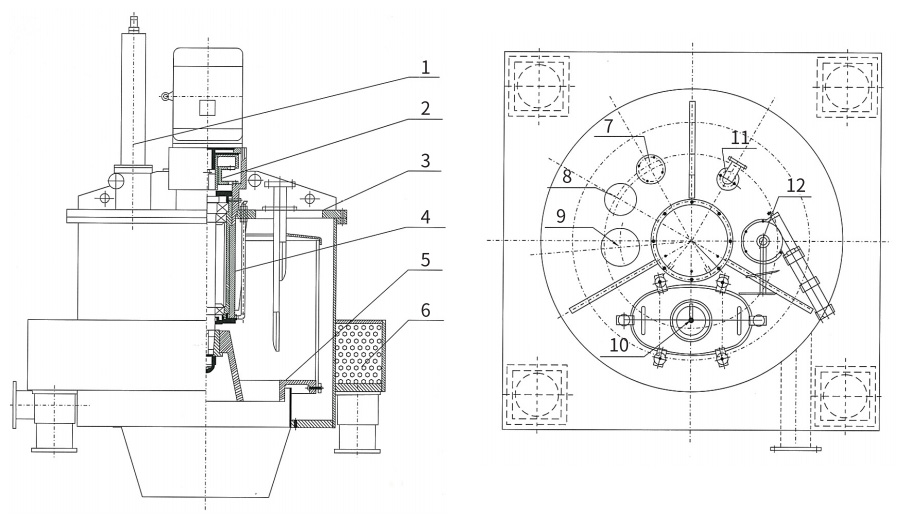

1/Scraper mechanism
2/Driving part
3/Top part
4/Bearing parts

5/Drum parts
6/Stand parts
7/Controller material layer
8/Bed observation hole

9/Feed opening
10/Manual operation
11/Washing tube
12/Blade hole

Optional configurations

1.Feed type: Side feed through single or multiple nozzles
2.Scraper discharge: hydraulic
3.Motor d rive: Motor driving General motor, explosion-proof motor, frequency conversion motor
4.Safety protection: Nitrogen protection (anti- explosion) system, vibration protection, mechanical and electrical interlocking protection, overload protection, material level detection
5.Surface treatment: Mirror finishing, matt finishing, and dulling
6.Outlet hopper: Diameter and height can be configured according to the requirements of customers
7.Residual solid cake treatment: Roller-aided scraper, Air counter- blowing, Air blow device on scraper.
8.Program control: Programmable control
9.Nitrogen protection system: Automatic nitrogen supply device, oxygen detection device, hydraulic sealing device and gas-liquid separator
10.Coating treatment: HALAR lined and PE lined

PAUT Technical parameters
