工作原理

1.Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket.
2.Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.
3.Big hinged cover, feeding pipe, washing pipe, observation glass and light.
4.Automatic CIP system (optional) cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.
5.Wide range of applications. No damage to the particle shape.
6.Inverter start-up, smooth starting, adjustable relative centrifugal force.
7.Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system (optional) is for anti- explosion applied to poisonous, flammable and explosive environment.

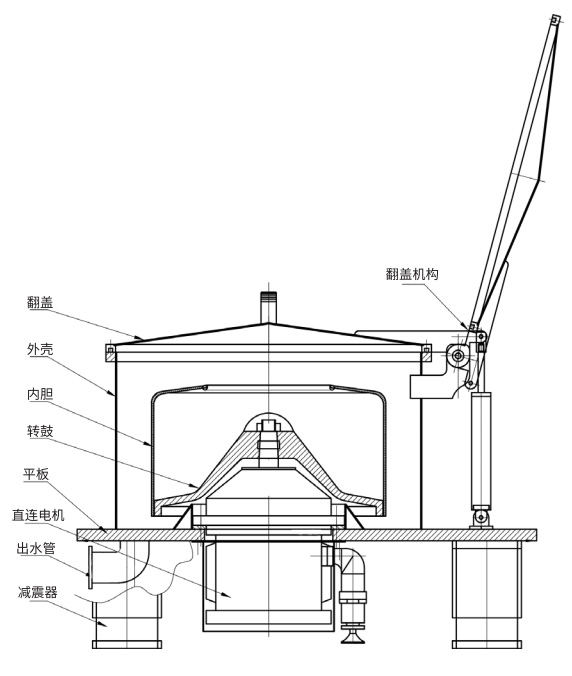

8.Model PSF centrifuge has applied direct shaft connected motor, which eliminates frictional dust from belt drive In the meantime, the motor is installed at the bottom of the machine, which requires minimum installation space.

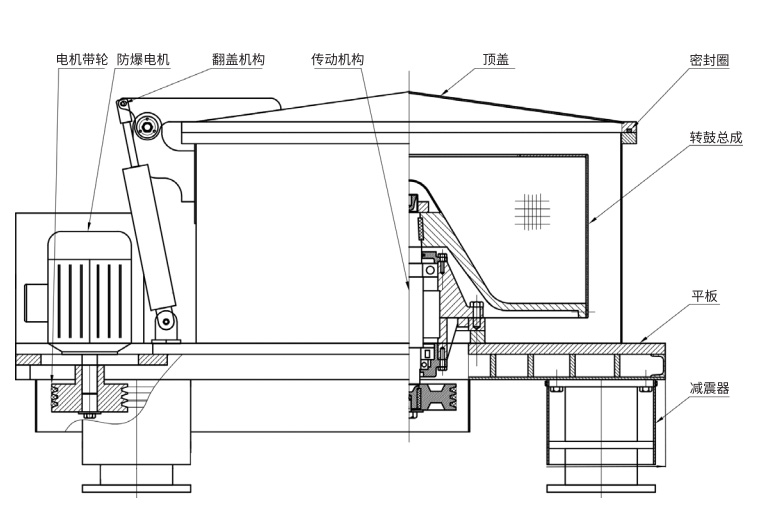

PSB Technical parameters

PSF Technical parameters
